Stand

Support accessories

Stand 300 kg
Supporting structure for machines up to 300 kg. Hoists up to 200 kg must be completed with model A wheels. Hoists lifting 300 kg and more are already designed for adapting on this accessory. The ballasts allow safe and quick installation, or alternatively the user can set counterweights or constraints on their own that, of course, must be checked by an authorized technician.
Mod. A




Stand 500 kg
Support structure for hoists lifting 500 kg. The ballasts allow a safe and quick installation, or alternatively the user can set counterweights or constraints on their own which of course must be checked by a qualified technician.
Mod. A




Stand 1000 kg
Support structure for hoists lifting 1000 kg. The ballasts allow safe and quick installation, or alternatively the user can set counterweights or constraints on their own that of course must be checked by a qualified technician

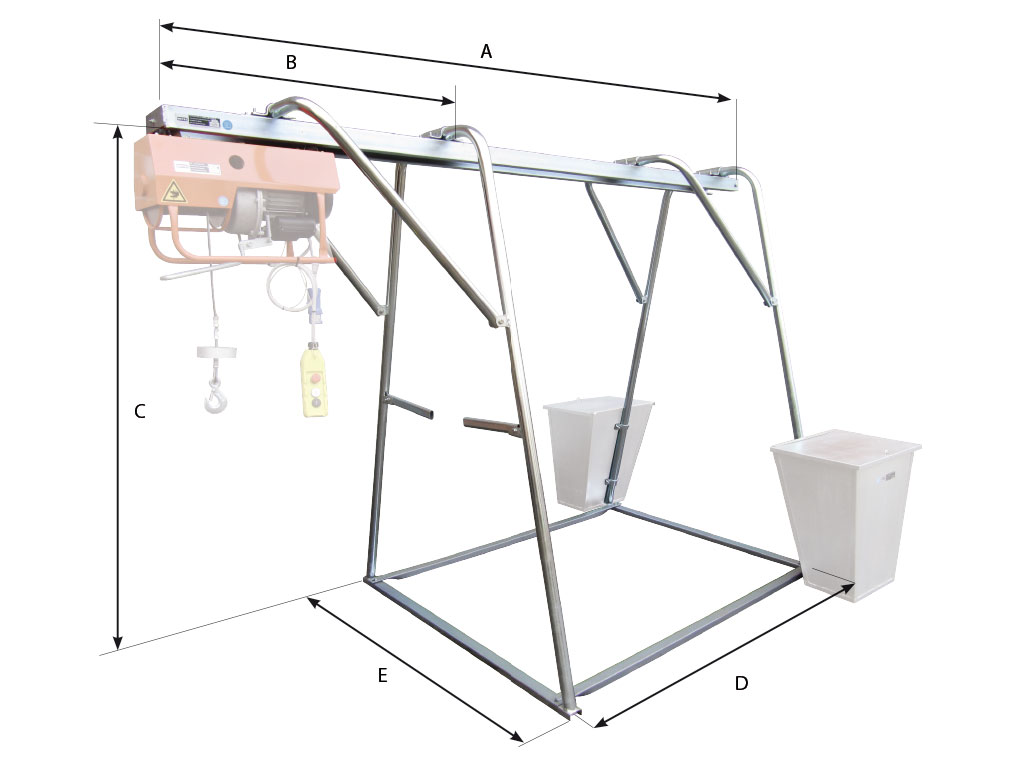

STAND Kg 300 Kg 500 Kg 1000
A 3000 3000 3000
B 1030 1055  1055
C 2080 2050  2050
D 1860 1890 1890
E 1580 1580 1580
weight with cross bars 87 126 132


tabella/beam.jpg ID: 164

two-railKg 300Kg 500Kg 1000
a180210210
b6080 80
c120120 120
weight25,75963
