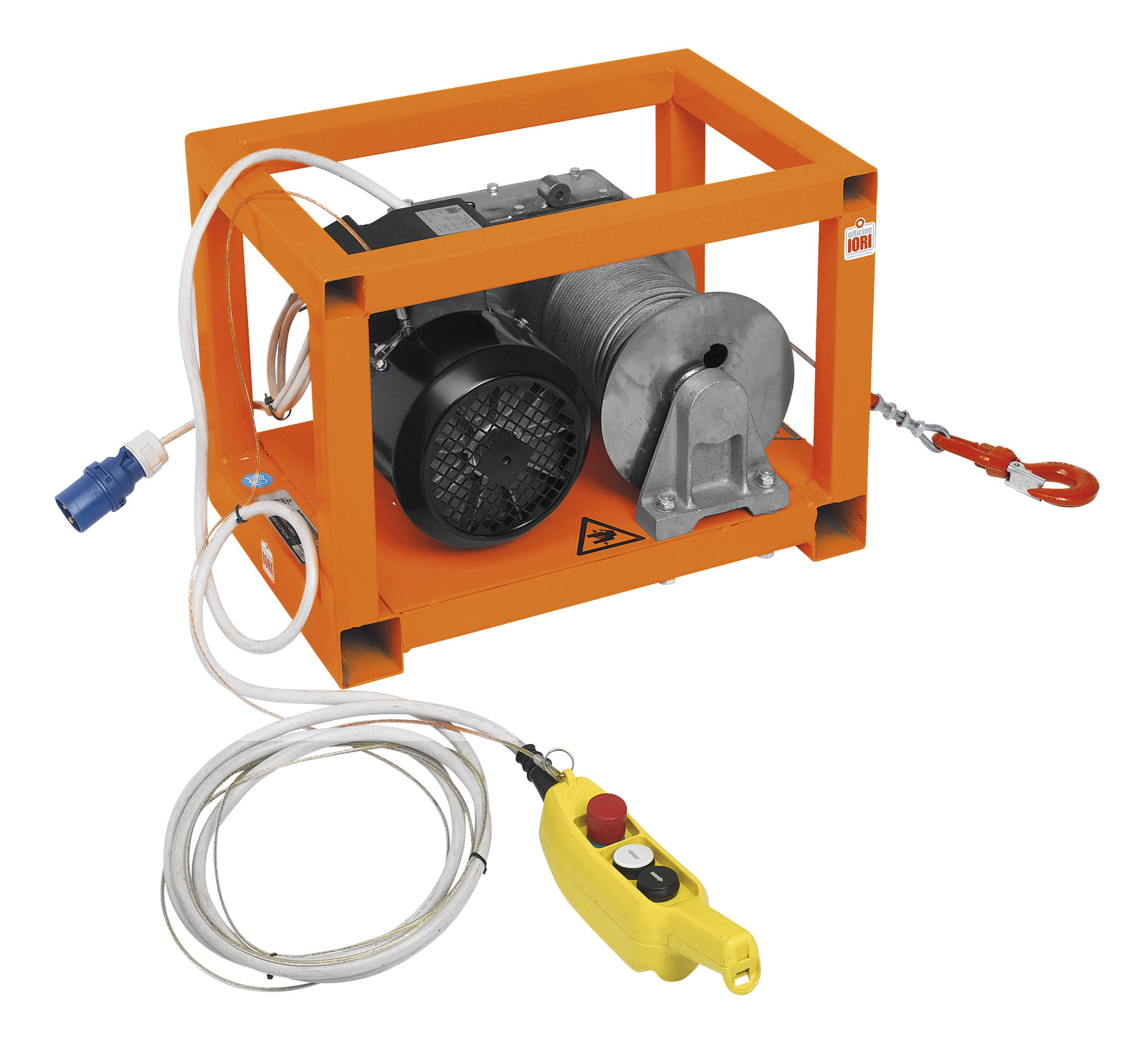

DM 300APQ12 - DT 500APQ

Hoisting and pulling winches

Techinical data
  DM 300APQ12 DT 500APQ
Safe working load kg 300 kg 500
Weight of the hoist kg 63 kg 66
Lifting speed m/min 12 m/min 21
Electric motor single-phase three-phase
Power kW 1,45 kW 2,2
Current intensity A 8 A 11,5/6
Voltage V 230 V 230/400
Frequency Hz 50 Hz 50
Rotor shaft angular speed giri/min 1400 giri/min 1400
Reduction ratio 1:41,3 1:25,5
Ø non-rotating wire rope mm 6 mm 7
Breaking load kN 25 kN 34
Lenght of the rope m 25 m 25
Max lenght of the rope m 40 m 40
Lenght 530 530
Width 360 360
Height 380 380
