| Techinical data | ||

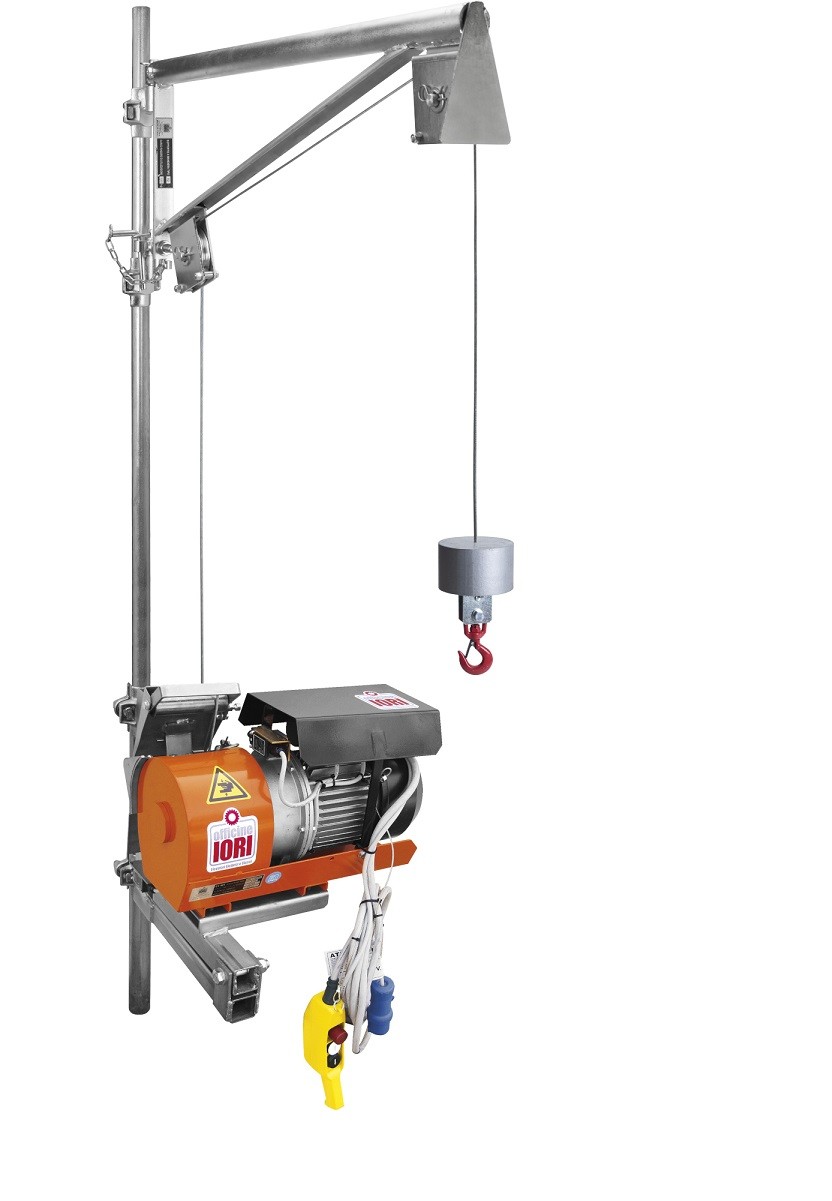

| DM 100AT | ||
| Safe working load | kg 100 | |
| Weight of the hoist | kg 65,5 | |
| Lifting speed | m/min 40 | |
| Electric motor | single-phase | |
| Power | kW 1,1 | |
| Current intensity | A 7,5 | |
| Voltage | V 230 | |
| Frequency | Hz 50 | |
| Rotor shaft angular speed | rpm 1400 | |
| Reduction ratio | 1:19 | |
| Ø non-rotating wire rope | mm 4 | |
| Breaking load | kN 11 | |
| Lenght of the rope | m 40x2 | |
| Max lenght of the rope | m 40x2 | |
| Lenght | 490 | |
| Width | 440 | |
| Height | 445 | |
