| Techinical data | ||

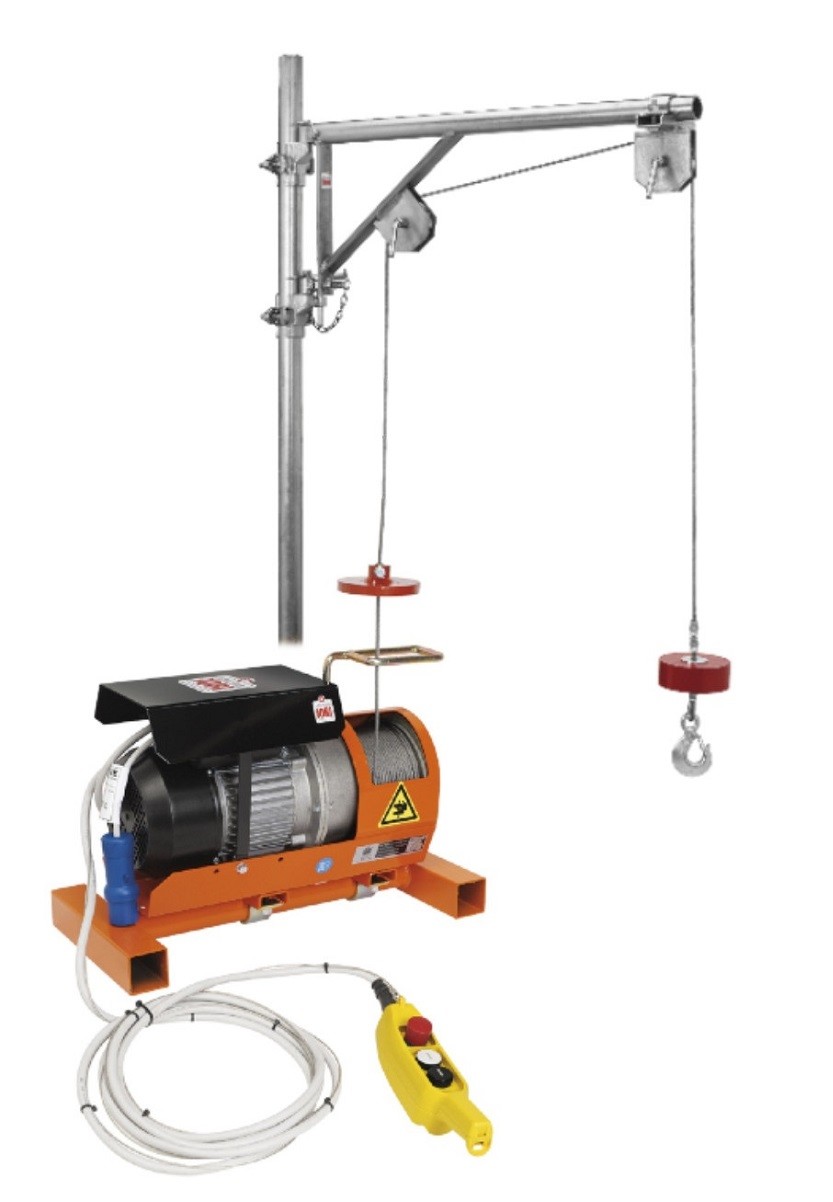

| DM 200ITT | ||
| Safe working load | kg 200 | |
| Weight of the hoist | kg 63 | |
| Lifting speed | m/min 25 | |
| Electric motor | single-phase | |
| Power | kW 0,75 | |
| Current intensity | A 6,5 | |
| Voltage | V 230 | |
| Frequency | Hz 50 | |
| Rotor shaft angular speed | rpm 1400 | |
| Reduction ratio | 1:26,6 | |
| Ø non-rotating wire rope | mm 5 | |
| Breaking load | kN 17 | |
| Lenght of the rope | m 25x2 | |
| Max lenght of the rope | m 30x2 | |
| Lenght | 620 | |
| Width | 300 | |
| Height | 390 | |
