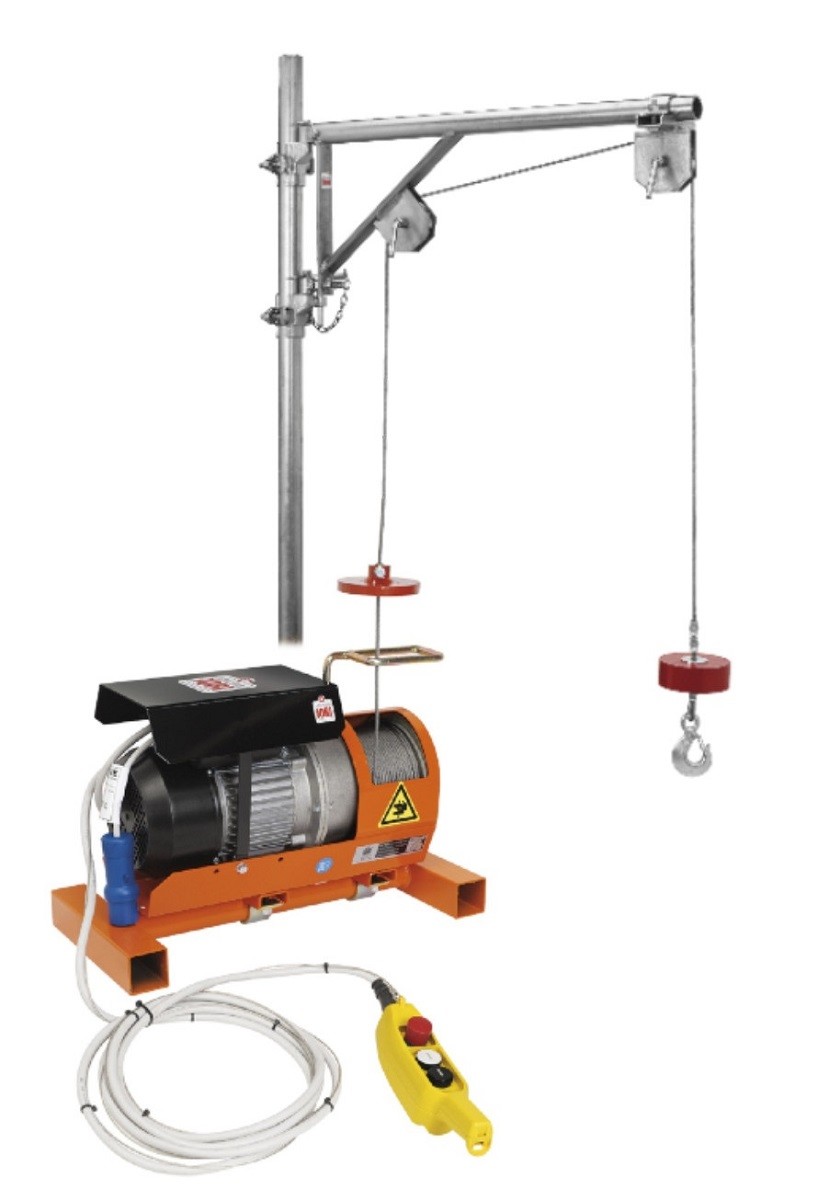

DM 150ITT VELOX - DM 200ITT VELOX

Scaffolding hoists

Fast ground hoist with cable return: the perfect tool to use when the time is the priority, due to its high speed.

o
Techinical data
  DM 150ITT VELOX DM 200ITT VELOX
Safe working load kg 150 kg 200
Weight of the hoist kg 67 kg 68
Lifting speed m/min 38 m/min 38
Electric motor single-phase monofase
Power kW 1,1 kW 1,45
Current intensity A 6,5 A 7,5
Voltage V 230 V 230
Frequency Hz 50 Hz 50
Rotor shaft angular speed rpm 1400 rpm 1400
Reduction ratio 1:19 1:19
Ø non-rotating wire rope mm 5 mm 5
Breaking load kN 17 kN 17
Lenght of the rope m 25x2 m 25x2
Max lenght of the rope m 30x2 m 30x2
Lenght 620 620
Width 300 300
Height 390 390


INFORMATION REQUEST

Download PDF

Accessories for this product

  • Plastic bucket holder
    Lifting accessories
  • Trapezoidal tilting bucket
    Lifting accessories
  • Two bucket holder
    Lifting accessories
  • Three bucket holder
    Lifting accessories
  • Four bucket holder
    Lifting accessories
  • Carrier with three hooks for scaffolding components
    Lifting accessories
  • Comando remoto bassa tensione
    Remote control box
