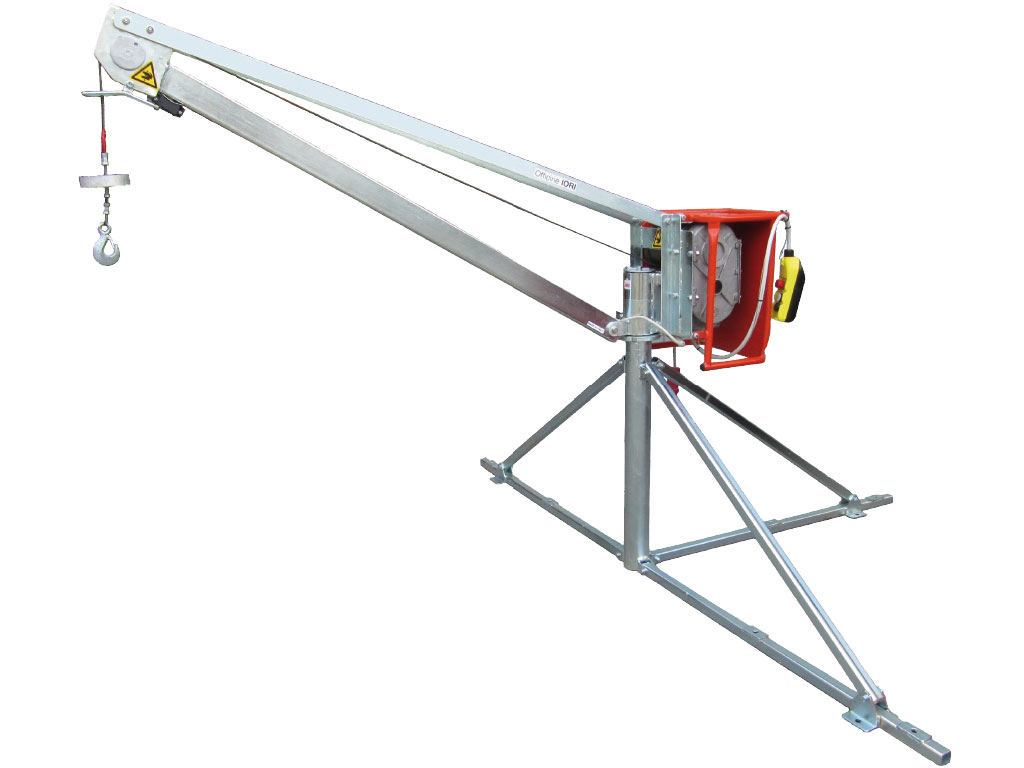

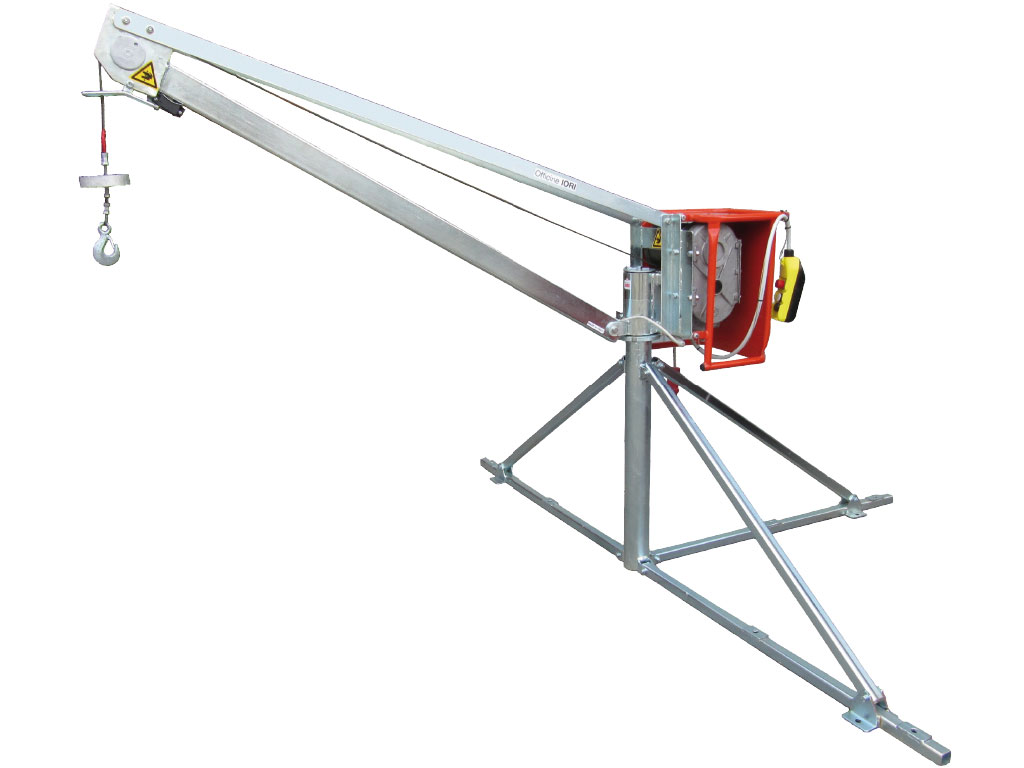

Tripod hoists

Hoist with tripod support extremely versatile with different powers and speeds. 360° rotation arm allows extreme versatility of use. Tripod support is supplied with the hoist.

Techinical data
Safe working load kg 350
Weight of the hoist kg 165
Lifting speed m/min 35
Electric motor Three-phase
Power kW 2,2
Current intensity A 6,8/3,9
Voltage V 230/400
Frequency Hz 50
Rotor shaft angular speed rpm 1400
Reduction ratio 1:18,2
Ø non-rotating wire rope mm 6
Breaking load kN 25
Lenght of the rope m 40
Max lenght of the rope m 50
Lenght 1900
Width 142
Height 350


Download PDF
