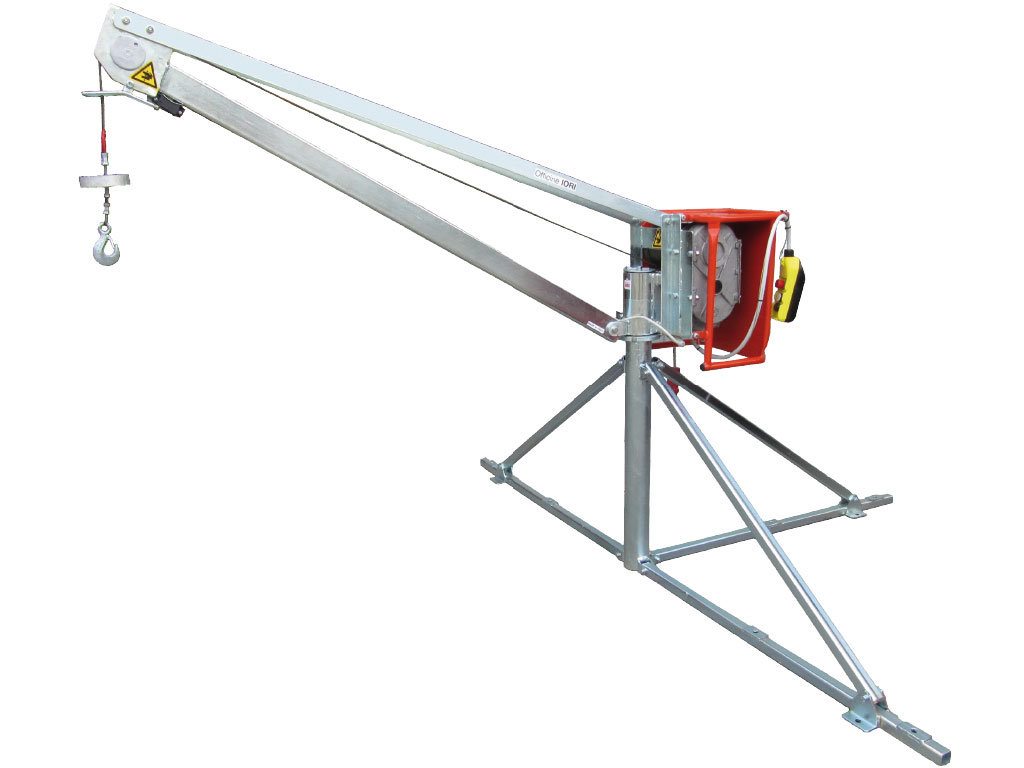

GRUETTA GT 500 - GRUETTA GM 500

Tripod hoists

Hoist with tripod support extremely versatile with different powers and speeds. 360° rotation arm allows extreme versatility of use. Tripod support is supplied with the hoist.

Techinical data
  GRUETTA GT 500 GRUETTA GM 500
Safe working load kg 500 kg 500
Weight of the hoist kg 170 kg 171
Lifting speed m/min 22 m/min 17
Electric motor Three-phase monofase
Power kW 2,2 kW 2,2
Current intensity A 6,8/3,9 A 9,5
Voltage V 230/400 V 230
Frequency Hz 50 Hz 50
Rotor shaft angular speed rpm 1400 rpm 1400
Reduction ratio 1:31 1:40,6
Ø non-rotating wire rope mm 6 mm 6
Breaking load kN 25 kN 25
Lenght of the rope m 40 m 40
Max lenght of the rope m 50 m 50
Lenght 1900 1900
Width 142 142
Height 350 350
