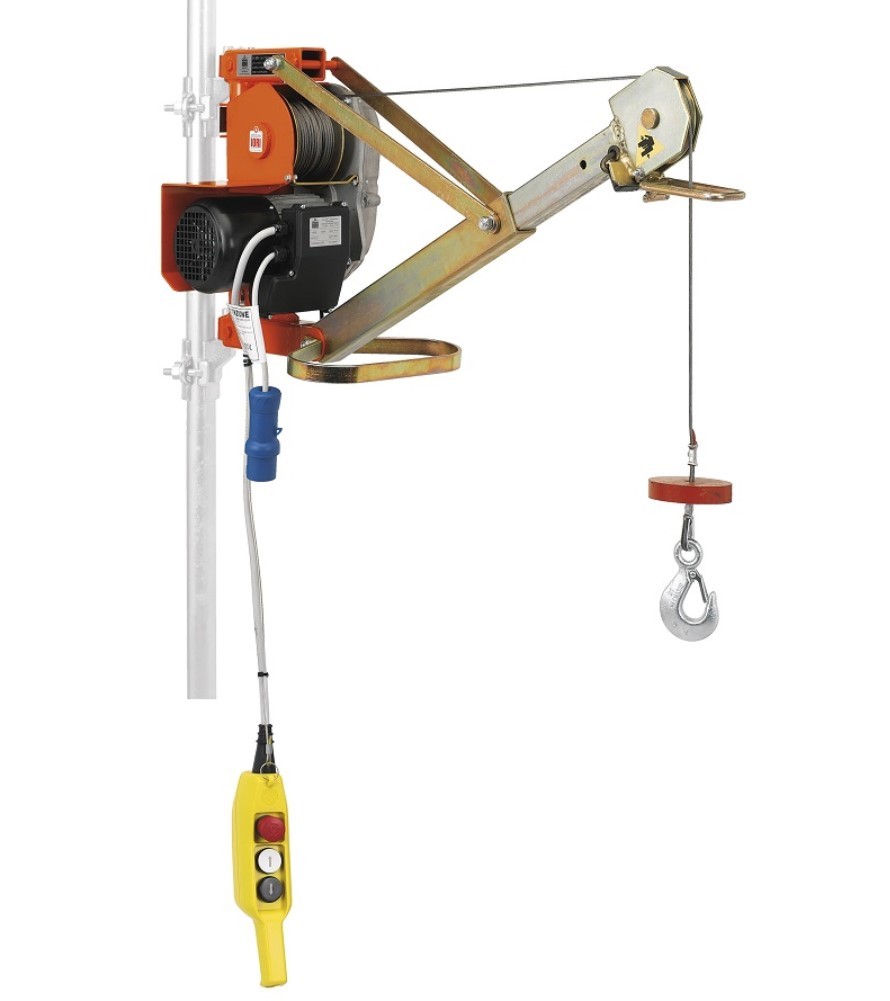

DM 200 CONDOR

Hoists with bracket and clamps

Single-phase hoist with an extensible arm that allows to overcome any obstacle during the load handling.

o
Techinical data
  DM 200 CONDOR
Safe working load kg 200
Weight of the hoist kg 41
Lifting speed m/min 21
Electric motor single-phase
Power kW 0,75
Current intensity A 6
Voltage V 230
Frequency Hz 50
Rotor shaft angular speed rpm 1400
Reduction ratio 1:25,9
Ø non-rotating wire rope mm 4
Breaking load kN 11
Lenght of the rope m 18
Max lenght of the rope m 18
Lenght 900
Width 350
Height 420
