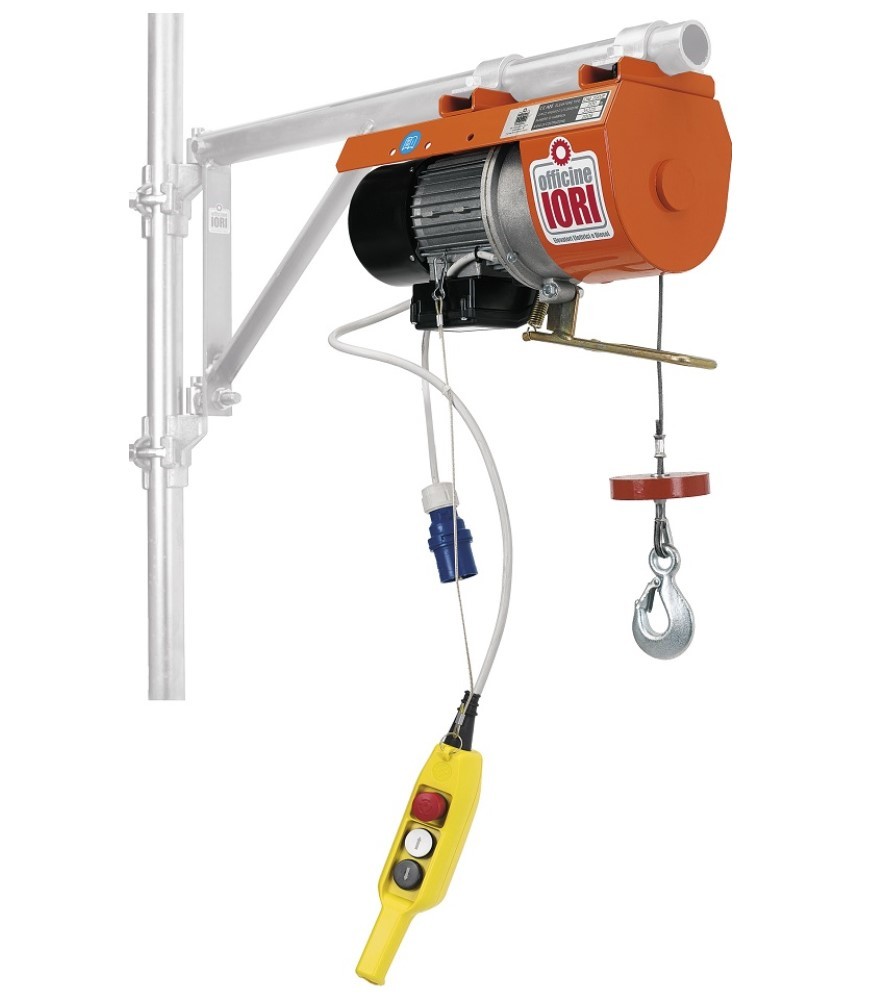

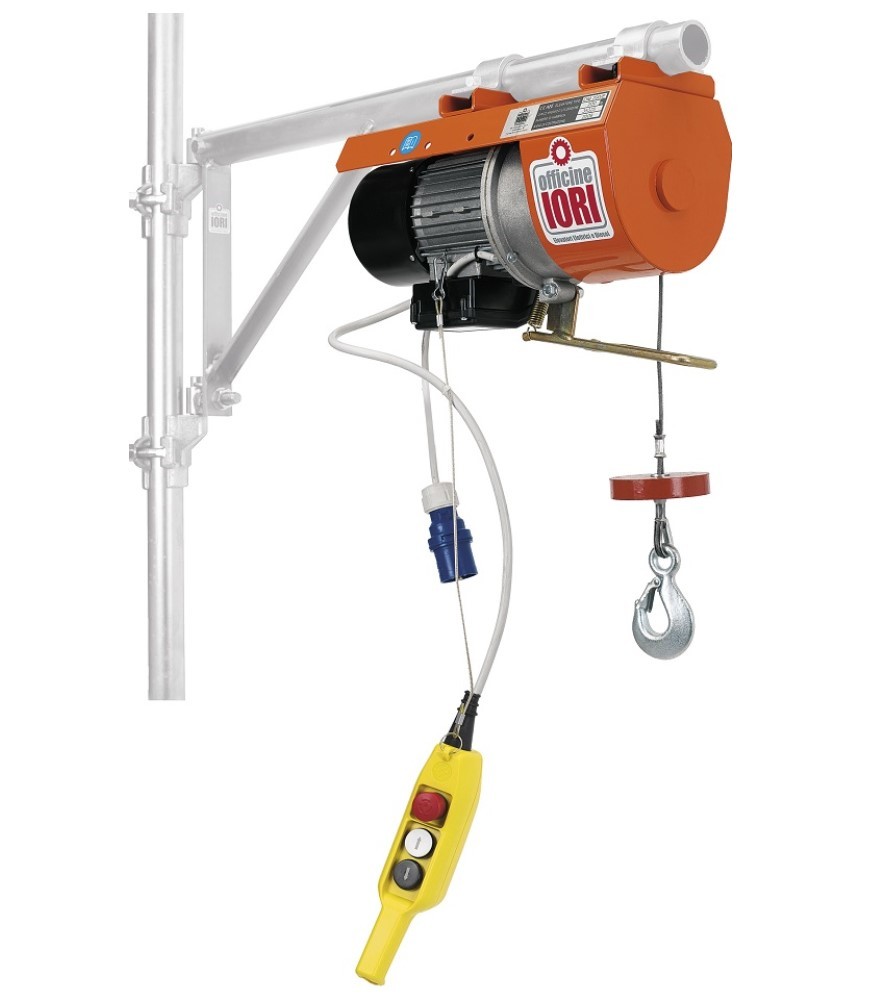

DM 150E - DM 200E

Hoists with bracket and clamps

The hoist for professional use, small renewals and light duties

Techinical data
  DM 150E DM 200E
Safe working load kg 150 kg 200
Weight of the hoist kg 22 kg 23
Lifting speed m/min 21 m/min 21
Electric motor single-phase monofase
Power kW 0,65 kW 0,75
Current intensity A 4,5 A 6
Voltage V 230 V 230
Frequency Hz 50 Hz 50
Rotor shaft angular speed rpm 1400 rpm 1400
Reduction ratio 1:21,8 1:21,8
Ø non-rotating wire rope mm 4 mm 4
Breaking load kN 11 kN 11
Lenght of the rope m 18 m 18
Max lenght of the rope m 18 m 18
Lenght 415 415
Width 210 210
Height 310 310
