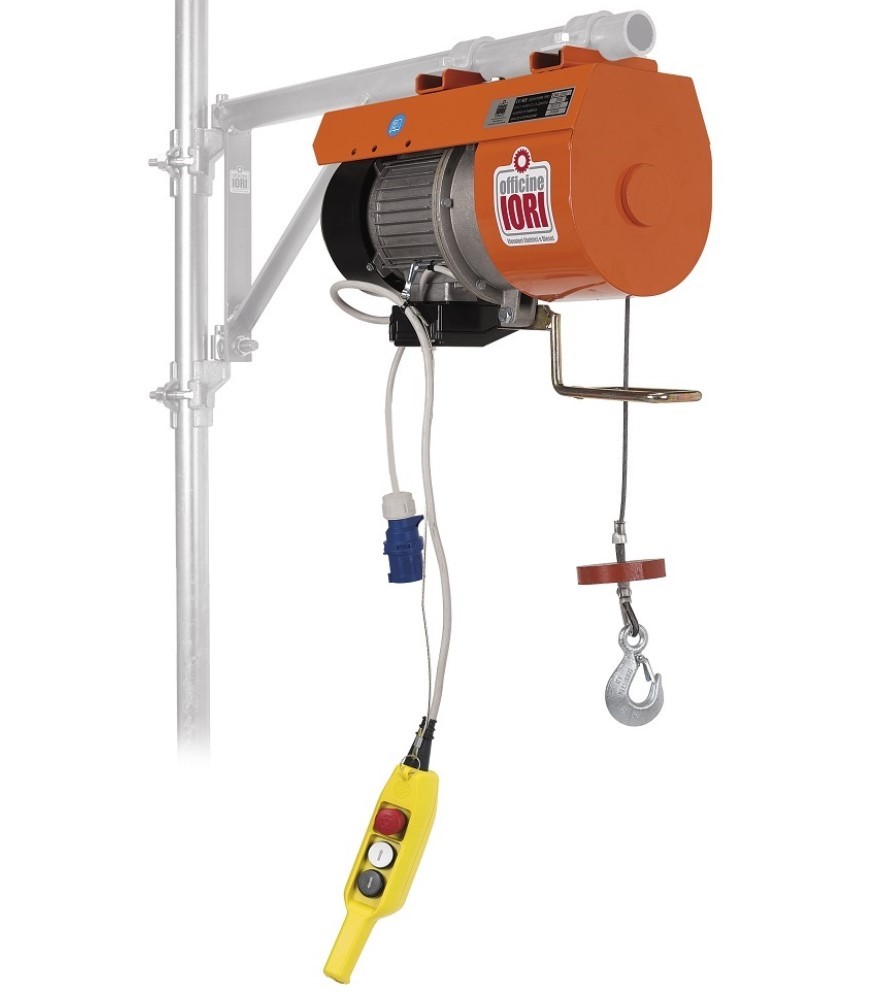

DT 200I - DM200I

Hoists with bracket and clamps

The hoist for the professional user, heavy duty and daily work.

o
Techinical data
  DT 200I DM 200I
Safe working load kg 200 kg 200
Weight of the hoist kg 36 kg 37
Lifting speed m/min 25 m/min 25
Electric motor Three-phase monofase
Power kW 0,75 kW 0,75
Current intensity A 6,0/3,0 A 6,5
Voltage V 230/400 V 230
Frequency Hz 50 Hz 50
Rotor shaft angular speed rpm 1400 rpm 1400
Reduction ratio 1:26,6 1:26,6
Ø non-rotating wire rope mm 5 mm 5
Breaking load kN 17 kN 17
Lenght of the rope m 25 m 25
Max lenght of the rope m 50 m 50
Lenght 510 510
Width 300 300
Height 385 385
