| Techinical data | ||

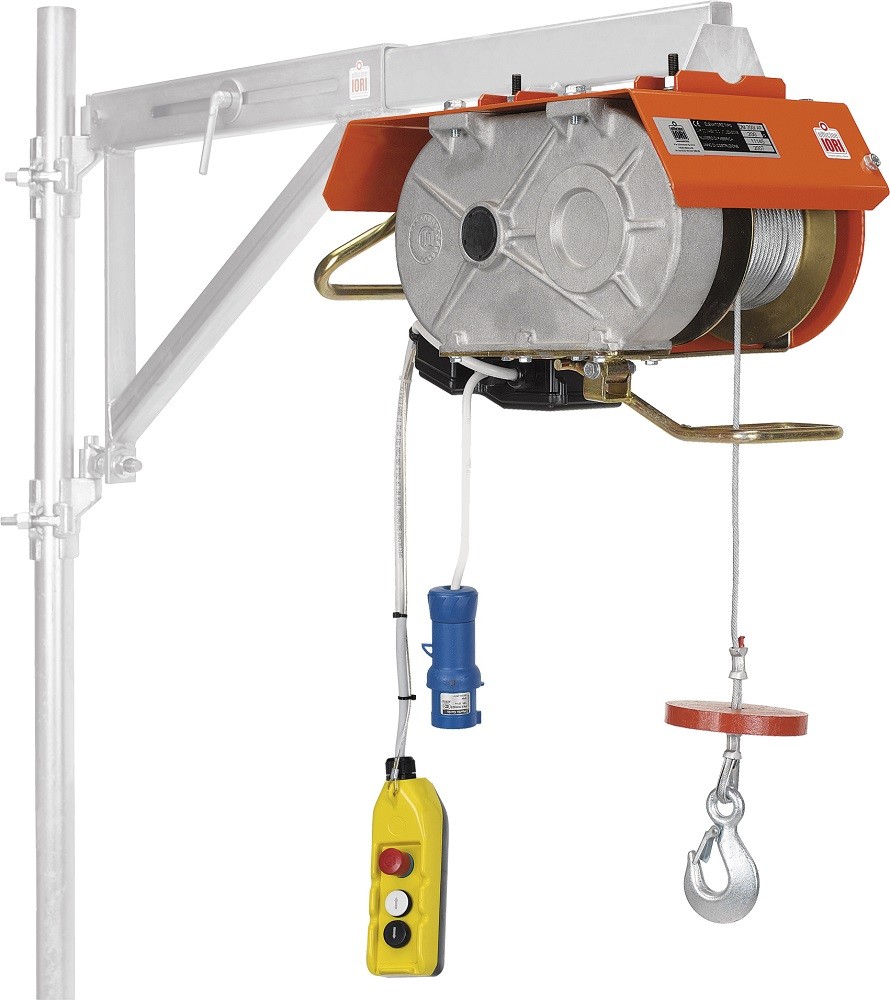

| DM 200AP | DM 200AP VELOX | |
| Safe working load | kg 200 | kg 200 |
| Weight of the hoist | kg 42 | kg 43 |
| Lifting speed | m/min 21 | m/min 38 |
| Electric motor | single-phase | monofase |
| Power | kW 0,75 | kW 2,2 |
| Current intensity | A 6,5 | A 8 |
| Voltage | V 230 | V 230 |
| Frequency | Hz 50 | Hz 50 |
| Rotor shaft angular speed | rpm 1400 | rpm 1400 |
| Reduction ratio | 1:25,56 | 1:18,2 |
| Ø non-rotating wire rope | mm 5 | mm 5 |
| Breaking load | kN 17 | kN 17 |
| Lenght of the rope | m 25 | m 40 |
| Max lenght of the rope | m 50 | m 50 |
| Lenght | 530 | 530 |
| Width | 350 | 350 |
| Height | 330 | 330 |
