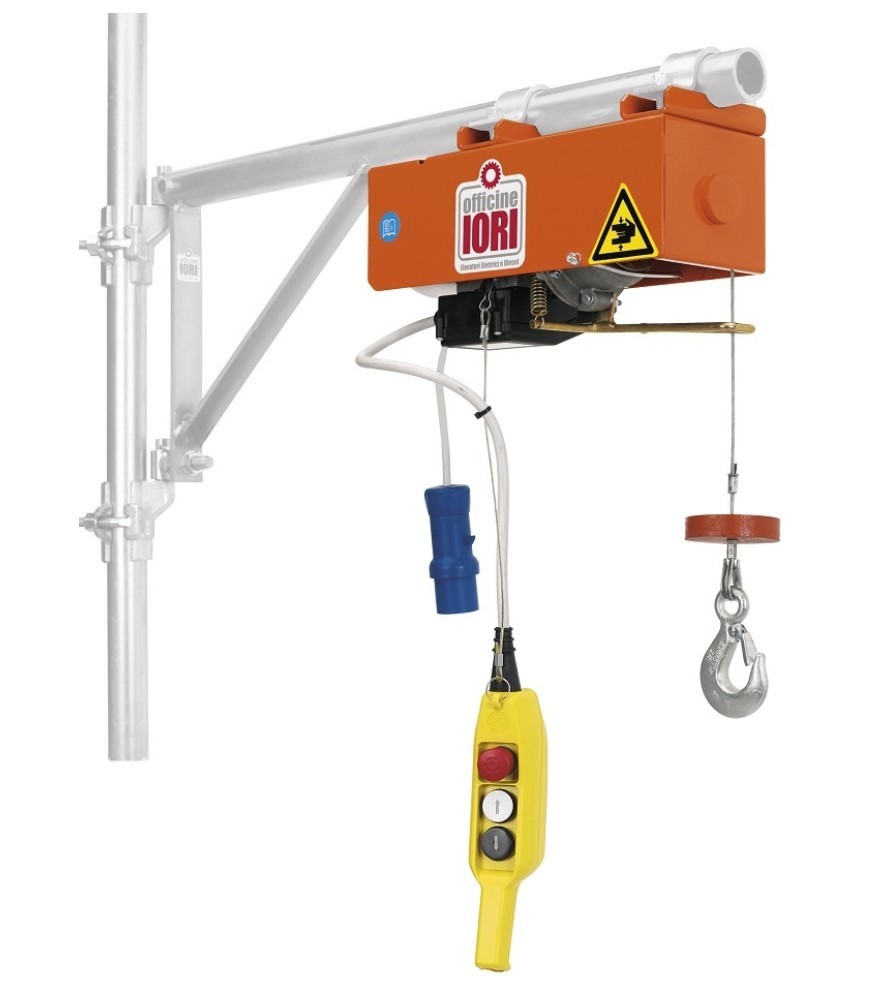

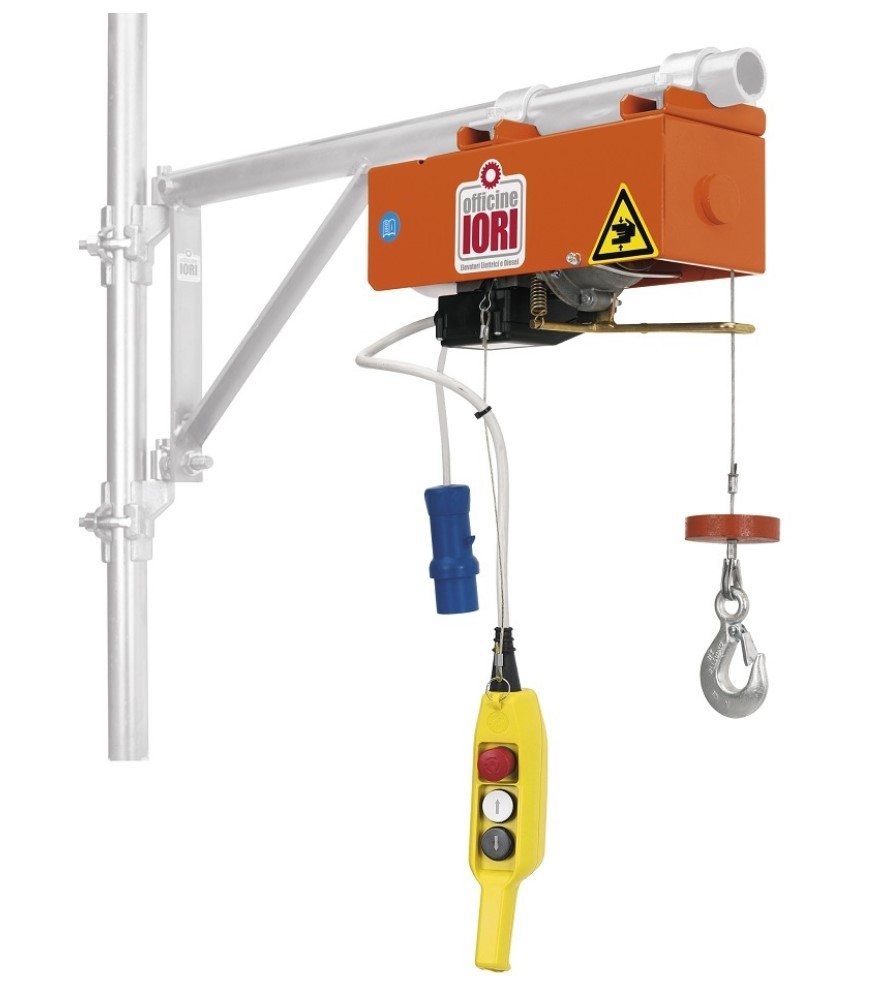

DM 100E

Hoists with bracket and clamps

Scaffold Hoist for do-it-yourself

o
Techinical data
  DM 100E
Safe working load kg 100
Weight of the hoist kg 15
Lifting speed m/min 15
Electric motor single-phase
Power kW 0,3
Current intensity A 2,2
Voltage V 230
Frequency Hz 50
Rotor shaft angular speed rpm 1400
Reduction ratio 1:23,90
Ø non-rotating wire rope mm 3
Breaking load kN 6,35
Lenght of the rope m 16
Max lenght of the rope m 16
Lenght 375
Width 170
Height 240
