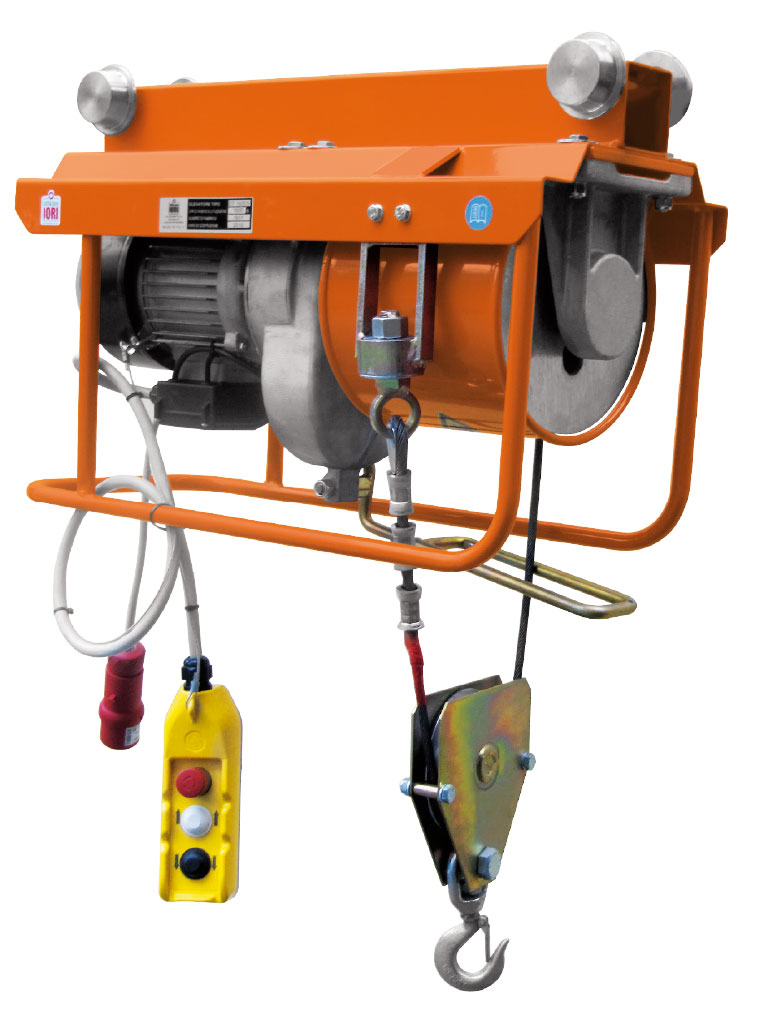

DT 1800

Hoists with stand

The maximum loading capacity of the range, for special uses.

o
Techinical data
  DT 1800
Safe working load kg 1800
Weight of the hoist kg 108
Lifting speed m/min 7
Electric motor Three-phase
Power kW 2,8
Current intensity A 9,6/5,5
Voltage V 230/400
Frequency Hz 50
Rotor shaft angular speed rpm 1400
Reduction ratio 1:48,5
Ø non-rotating wire rope mm 8
Breaking load kN 41,1
Lenght of the rope m 25x2
Max lenght of the rope m 30x2
Lenght 720
Width 320
Height 520
