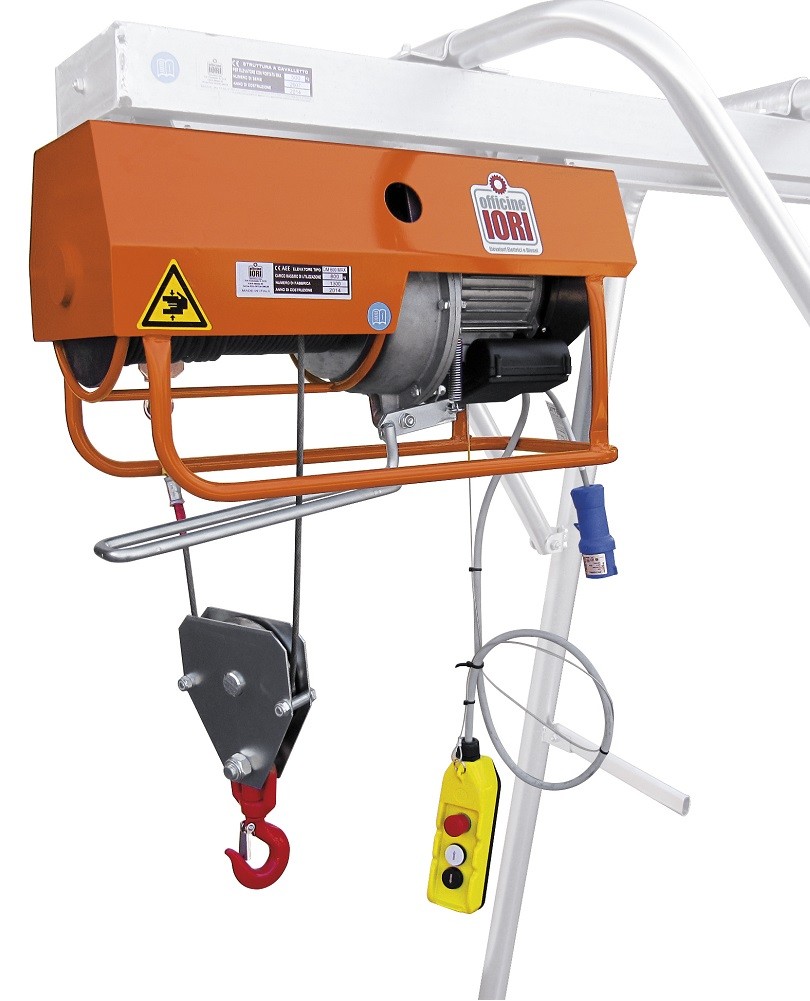

DM 800MAX - DT 950MAX

Hoists with stand

This gantry hoist is compact and strong, when the heavy working load is the priority.

Techinical data
  DT 950MAX DM 800MAX
Safe working load kg 950 kg 800
Weight of the hoist kg 75 kg 76
Lifting speed m/min 12 m/min 9
Electric motor Three-phase single-phase
Power kW 2,2 kW 2,2
Current intensity A 11,5/6 A 11,5
Voltage V 230/400 V 230
Frequency Hz 50 Hz 50
Rotor shaft angular speed rpm 1400 rpm 1400
Reduction ratio 1:31 1:40,7
Ø non-rotating wire rope mm 7 mm 7
Breaking load kN 34 kN 34
Lenght of the rope m 25x2 m 25x2
Max lenght of the rope m 40x2 m 40x2
Lenght 600 600
Width 300 300
Height 470 470
