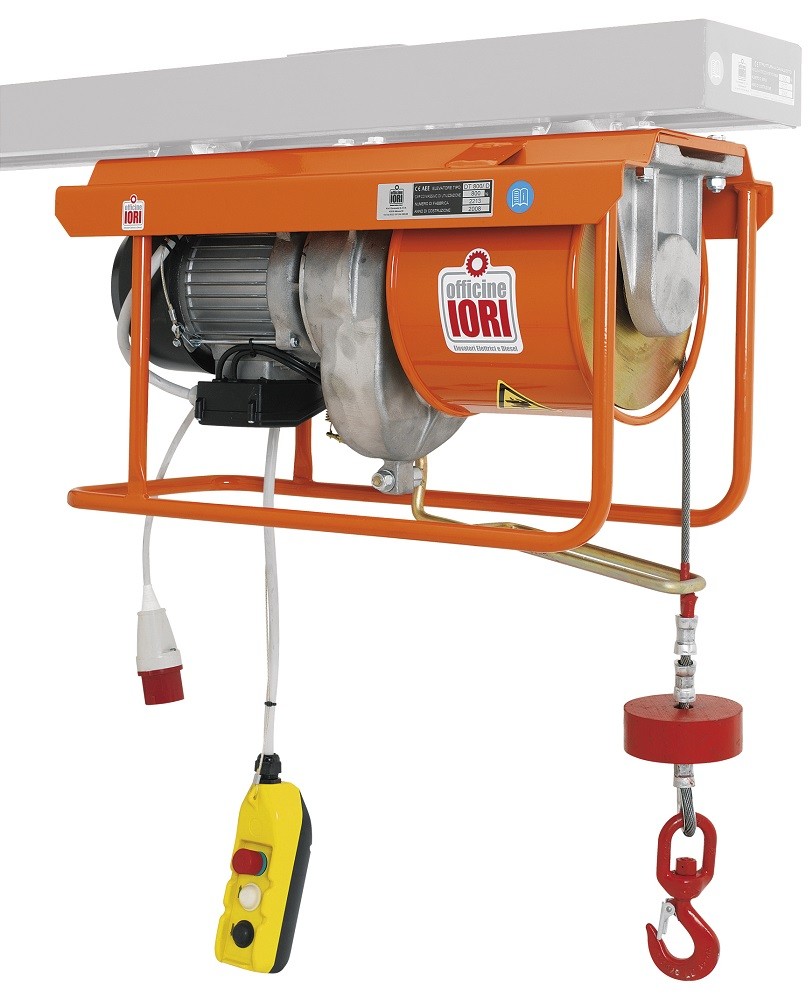

DT 800D

Hoists with stand

The single-line lifting of this gantry hoists allows not only high load capacity, but also usage at great heights

o
Techinical data
  DT 800D
Safe working load kg 800
Weight of the hoist kg 80
Lifting speed m/min 14
Electric motor Three-phase
Power kW 2,8
Current intensity A 9,6/5,5
Voltage V 230/400
Frequency Hz 50
Rotor shaft angular speed rpm 1400
Reduction ratio 1:48,5
Ø non-rotating wire rope mm 9
Breaking load KN 56
Lenght of the rope m 25
Max lenght of the rope m 40
Lenght 720
Width 320
Height 520
