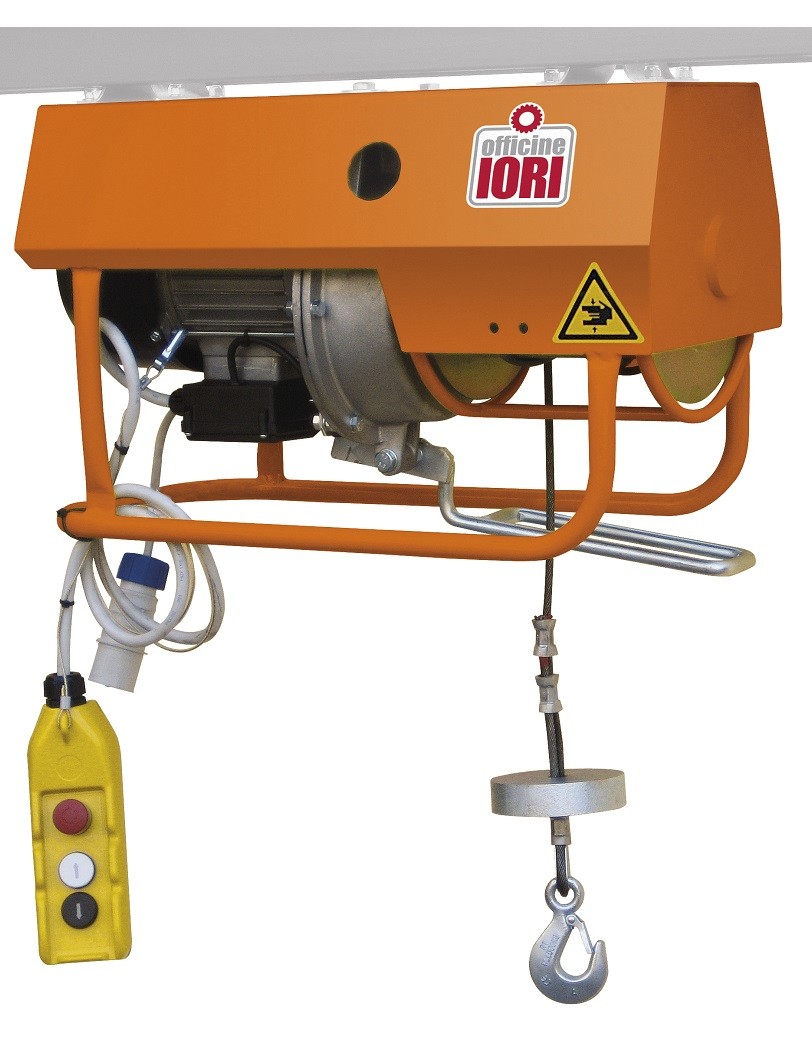

DM 500MAX - DT 500MAX

Hoists with stand

This gantry hoist is compact and strong, granting performances on large building sites.

o
Techinical data
  DM 500MAX DT 500MAX
Safe working load kg 500 kg 500
Weight of the hoist kg 64 kg 62
Lifting speed m/min 16 m/min 22
Electric motor single-phase three-phase
Power kW 2,2 kW 2,2
Current intensity A 11,5 A 11,5/6
Voltage V 230 V 230/400
Frequency Hz 50 Hz 50
Rotor shaft angular speed rpm 1400 rpm 1400
Reduction ratio 1:40,7 1:31
Ø non-rotating wire rope mm 7 mm 7
Breaking load kN 34 kN 34
Lenght of the rope m 25 m 25
Max lenght of the rope m 40 m 50
Lenght 600 600
Width 300 300
Height 470 470
