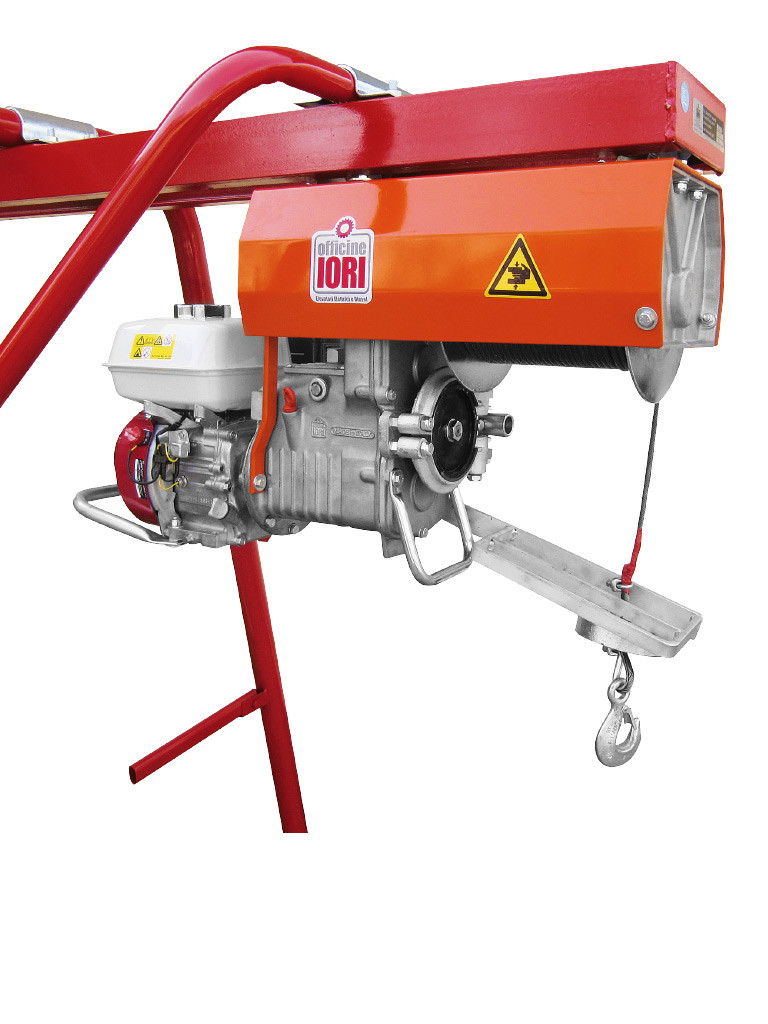

DS 500 - DS 1000

Hoists with stand

Hoist with gantry solid and reliable when the high working load is the priority

o
Techinical data
  DS 500 DS 1000
Safe working load kg 500 kg 1000
Weight of the hoist kg 83 kg 94
Lifting speed m/min 30 m/min 15
Power Kw 6 Kw 6
Rotor shaft angular speed 1800/3600 1800/3600
Ø non-rotating wire rope mm 7 mm 7
Breaking load KN 34 KN 34
Lenght of the rope m 25 m 25x2
Max lenght of the rope m 50 m 40x2
Lenght 1000 1000
Width 430 430
Height 600 600


INFORMATION REQUEST

Download PDF

Accessories for this product

  • Stand
    Support accessories
  • Plastic bucket holder
    Lifting accessories
  • Trapezoidal tilting bucket
    Lifting accessories
  • Opening conical bucket
    Lifting accessories
  • Pair of containers for stand
    Lifting accessories
  • Two bucket holder
    Lifting accessories
  • Three bucket holder
    Lifting accessories
  • Four bucket holder
    Lifting accessories
  • Carrier with three hooks for scaffolding components
    Lifting accessories
  • Comando remoto bassa tensione
    Remote control box
