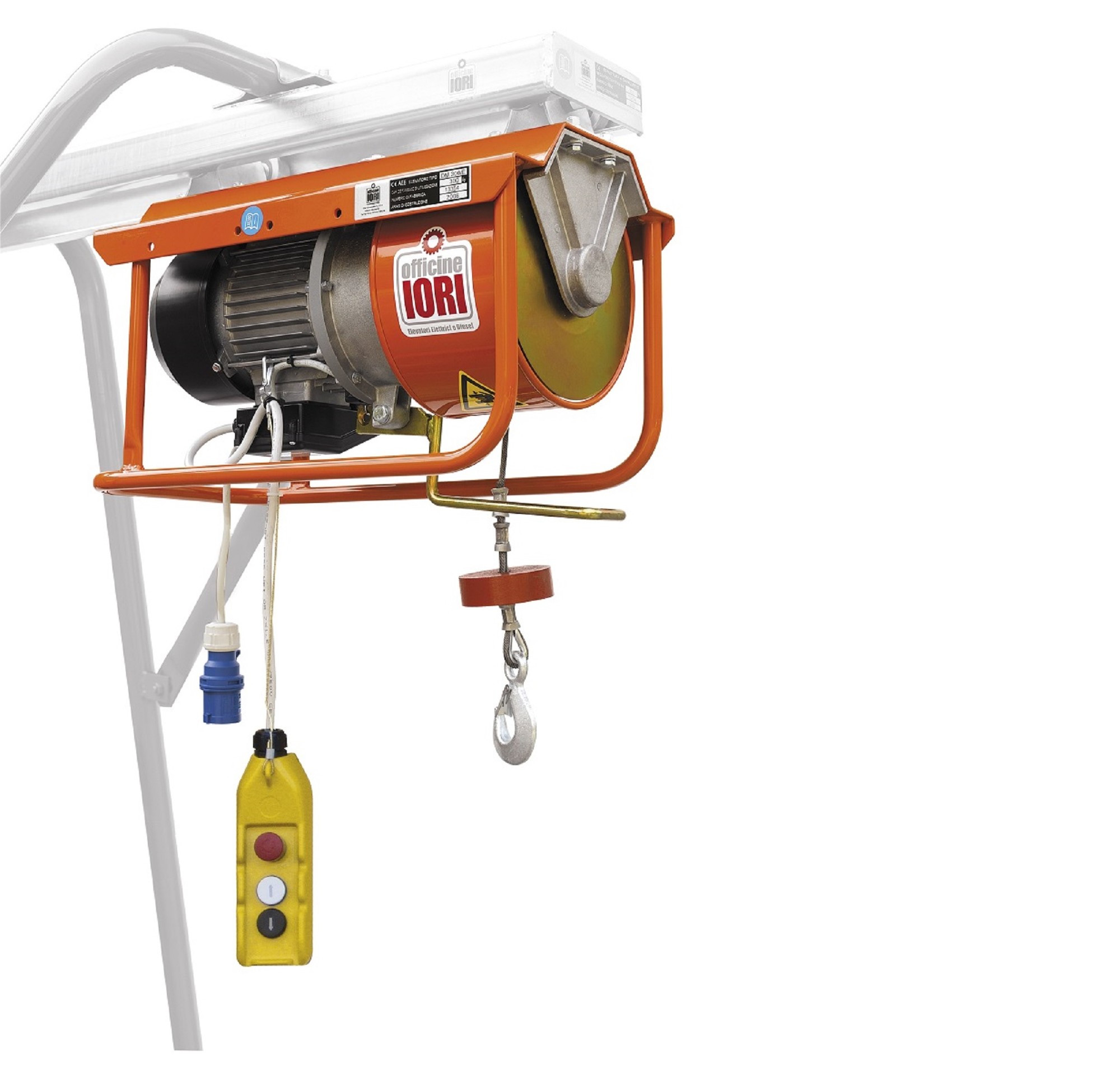

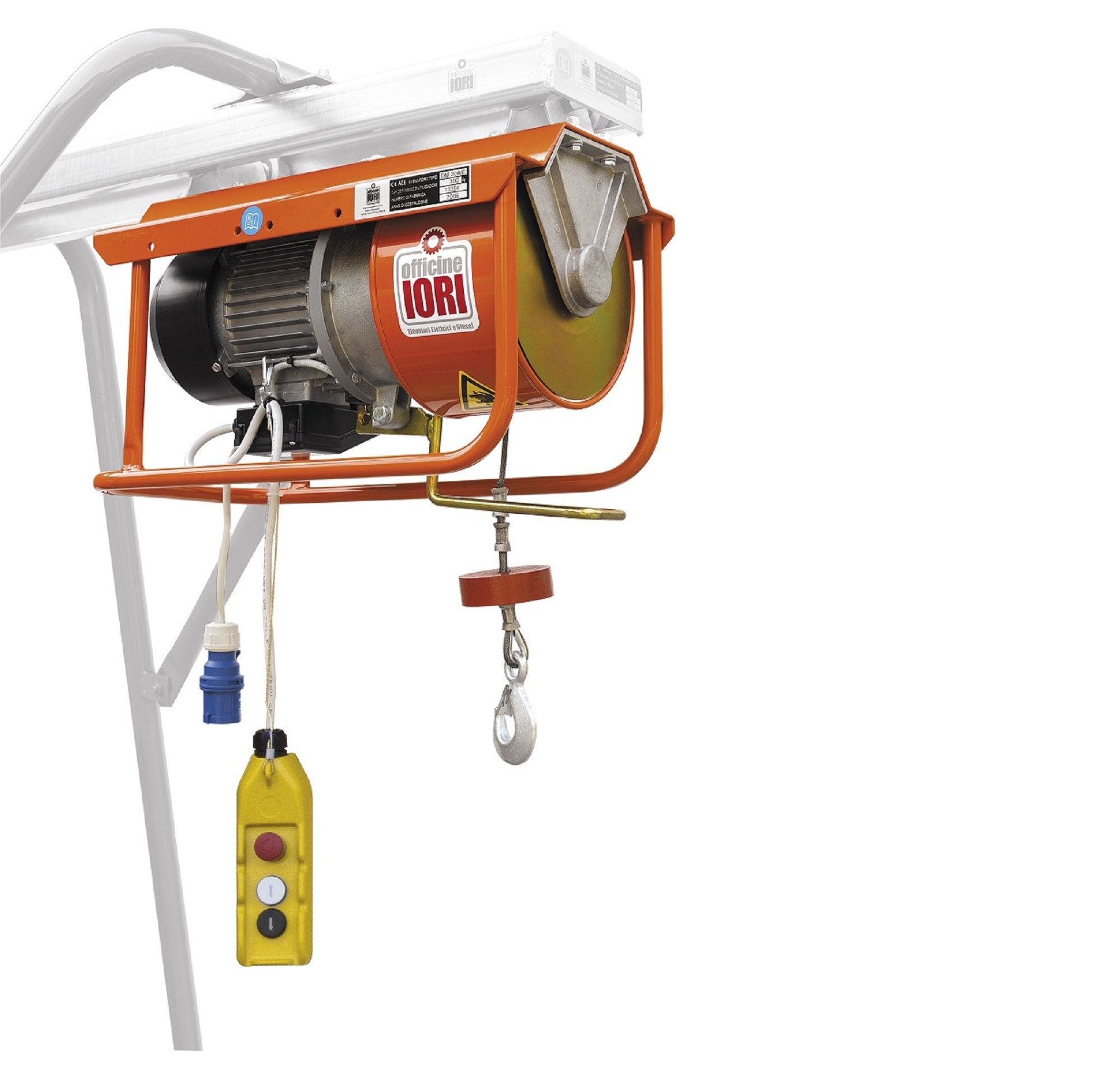

DM 300E - DT 300E

Hoists with stand

This gantry hoist is ideal for medium sized building sites. The easy-to-assembly gantry completes the configuration

o
Techinical data
  DM 300E DT 300E
Safe working load kg 300 kg 300
Weight of the hoist kg 47 kg 45
Lifting speed m/min 23 m/min 23
Electric motor single-phase three-phase
Power kW 1,45 kW 1,85
Current intensity A 8 A 8/4,5
Voltage V 230 V 230/400
Frequency Hz 50 Hz 50
Rotor shaft angular speed rpm 1400 rpm 1400
Reduction ratio 1:26,6 1:26,6
Ø non-rotating wire rope mm 6 mm 6
Breaking load kN 25 kN 25
Lenght of the rope m 25 m 25
Max lenght of the rope m 40 m 50
Lenght 580 580
Width 305 305
Height 410 410


INFORMATION REQUEST

Download PDF

Accessories for this product

  • Stand
    Support accessories
  • Plastic bucket holder
    Lifting accessories
  • Trapezoidal tilting bucket
    Lifting accessories
  • Pair of containers for stand
    Lifting accessories
  • Two bucket holder
    Lifting accessories
  • Three bucket holder
    Lifting accessories
  • Four bucket holder
    Lifting accessories
  • Carrier with three hooks for scaffolding components
    Lifting accessories
  • Comando remoto bassa tensione
    Remote control box
